Stackdoor Curved

STACKDOOR CURVED, FLEXIBILITY OF DESIGN

This revolutionary security system can follow architectural plan profiles, as the Stackdoor Curved can be tailored to bespoke facade openings and building designs.

With a large opening width, Stackdoor Curved is ideal for automatic revolving doors and retail outlets with curved entrances.

CE compliant with a patented self-locking mechanism that secures the grille upon closing, preventing forced lifting.

Stackdoor curved Stacking Grille Features

Stackdoor is a lightweight system designed for maximum visibility without compromising security.

This revolutionary stacking grille features over 80% free airflow through stack-and-pin technology, with a stacking mechanism that minimizes installation volume.

It eliminates the need for a headbox, requiring only minimal space above the curtain.

Unlike standard security grilles, Stackdoor models include self-locking technology, preventing lifting without additional locks.

  • Open structure ensures unobstructed views, ventilation, and an attractive appearance.
  • Space-saving design takes up less space than classic security shutters.
  • Burglar and vandal-resistant due to robust, sturdy construction.

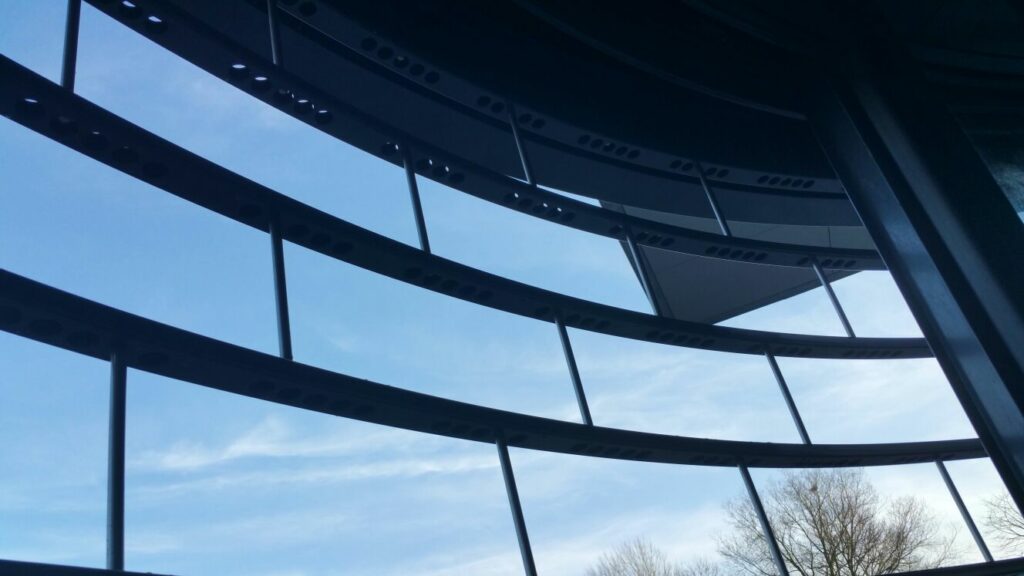

  • Compact stacking zone at high level with no head box.
  • Self-locking mechanism enhances security without auxiliary locks.

Typical Applications for Stackdoor Curved

  • Automatic revolving doors for hotels, offices, commercial buildings
  • Luxury store fronts
  • Restaurants & bars
  • Shopping centres & kiosks
  • Retail outlets with curved entrances
  • Airports & stations

An effective alternative to shop front roller shutters and car park roller shutters

Specification Details & Options

  • Galvanised steel pins secured into horizontal galvanised steel bars. Stainless steel pins and bars as an option.
  • Optional brushed stainless steel or polyester powder coat finish to horizontal bars to any standard RAL/BS colour
  • Heavy duty extruded aluminium guide rails anchored direct to the structure
  • Motorised to allow controlled ascent and descent
  • External Drive Motor or Tube Motor for low duty cycle, or where limited to single phase supply
  • Range of compatible controls including rotary switch, key switch, remote (control) and emergency manual crank
  •
View Data Sheet for Approved Dimensions:

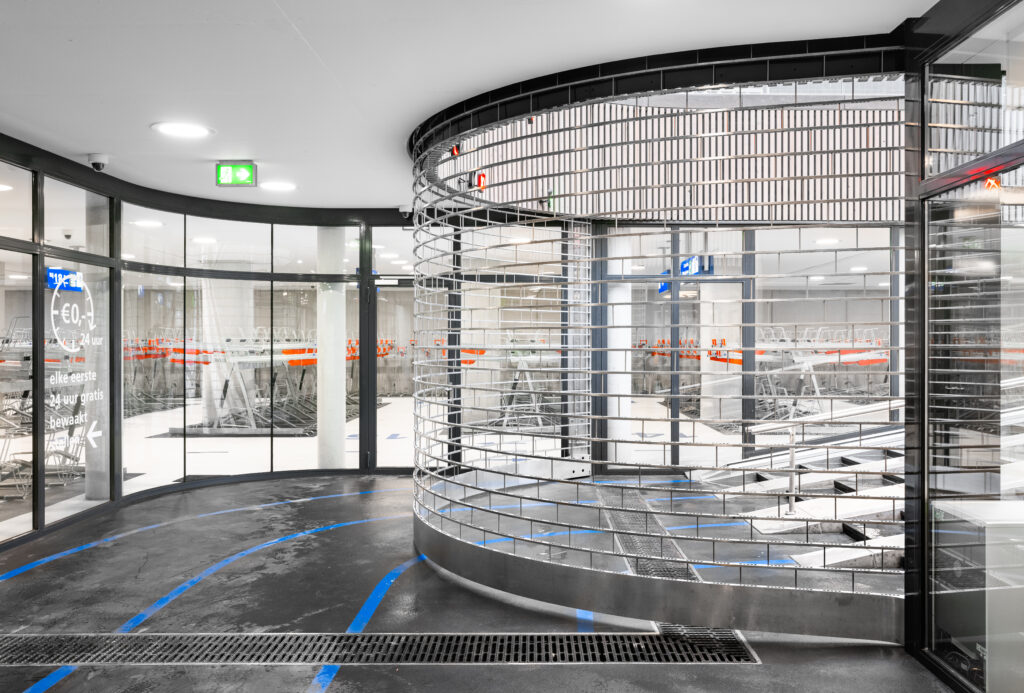

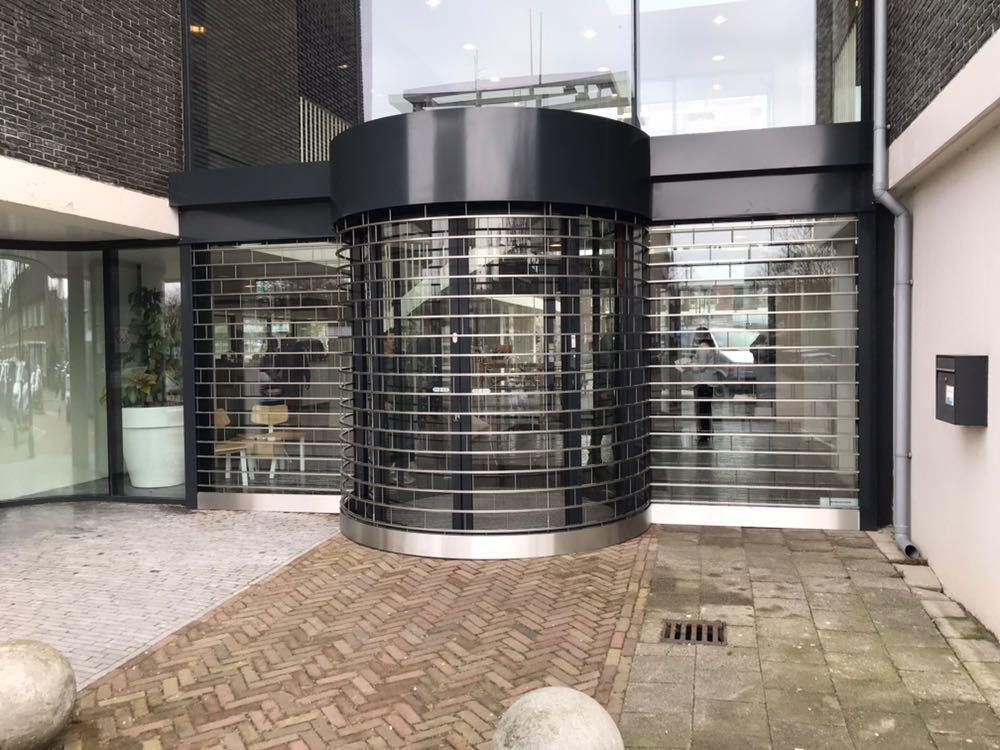

PHOTO GALLERY

GENERATE YOUR OWN SPECIFICATION TEXT FOR THIS PRODUCT

Enter your project details below to receive generated specification text for your project.

Stackdoor Configurator

Clear sizes

By default, the Stackdoor is operated by means of a key switch. In principle, any operating component is possible.
If the gate protects the only entrance, an emergency operation is recommended so that the user can reach the meter box in the event of a power failure.
