STACKDOOR XXL, Made to measure in XXL dimensions
As Stackdoor stacking grilles are completely custom made, they are available in large sizes to bridge unusually wide openings. This can suit a range of applications including zoning retail areas, sectioning areas in airports or for transport hubs and sports arenas.
The XXL version secures openings up to 16m wide and 7m high. These dimensions are not achievable with a classic rolling shutter or grille where the central shaft would not be able to cope with the load.
By placing multiple Stackdoors next to each other, the maximum width that can be bridged is, in fact, unlimited!
CE compliant with a patented self-locking mechanism that secures the grille upon closing, preventing forced lifting.
Stackdoor XXL Stacking Grille Features
Stackdoor is a lightweight system designed for maximum visibility without compromising security.
This revolutionary stacking grille features over 80% free airflow through stack-and-pin technology, with a stacking mechanism that minimizes installation volume.
It eliminates the need for a headbox, requiring only minimal space above the curtain.
Unlike standard security grilles, Stackdoor models include self-locking technology, preventing lifting without additional locks.
- Open structure ensures unobstructed views, ventilation, and an attractive appearance.
- Space-saving design takes up less space than classic security shutters.
- Burglar and vandal-resistant due to robust, sturdy construction.
- Compact stacking zone at high level with no head box.
- Self-locking mechanism enhances security without auxiliary locks.
Typical Applications for Stackdoor XXL
- Zoning & Partitioning
- Car Parks
- Retail outlets
- Medium risk commercial buildings
- Transport hubs
An effective alternative to shop front roller shutters and car park roller shutters
Specification Details & Options

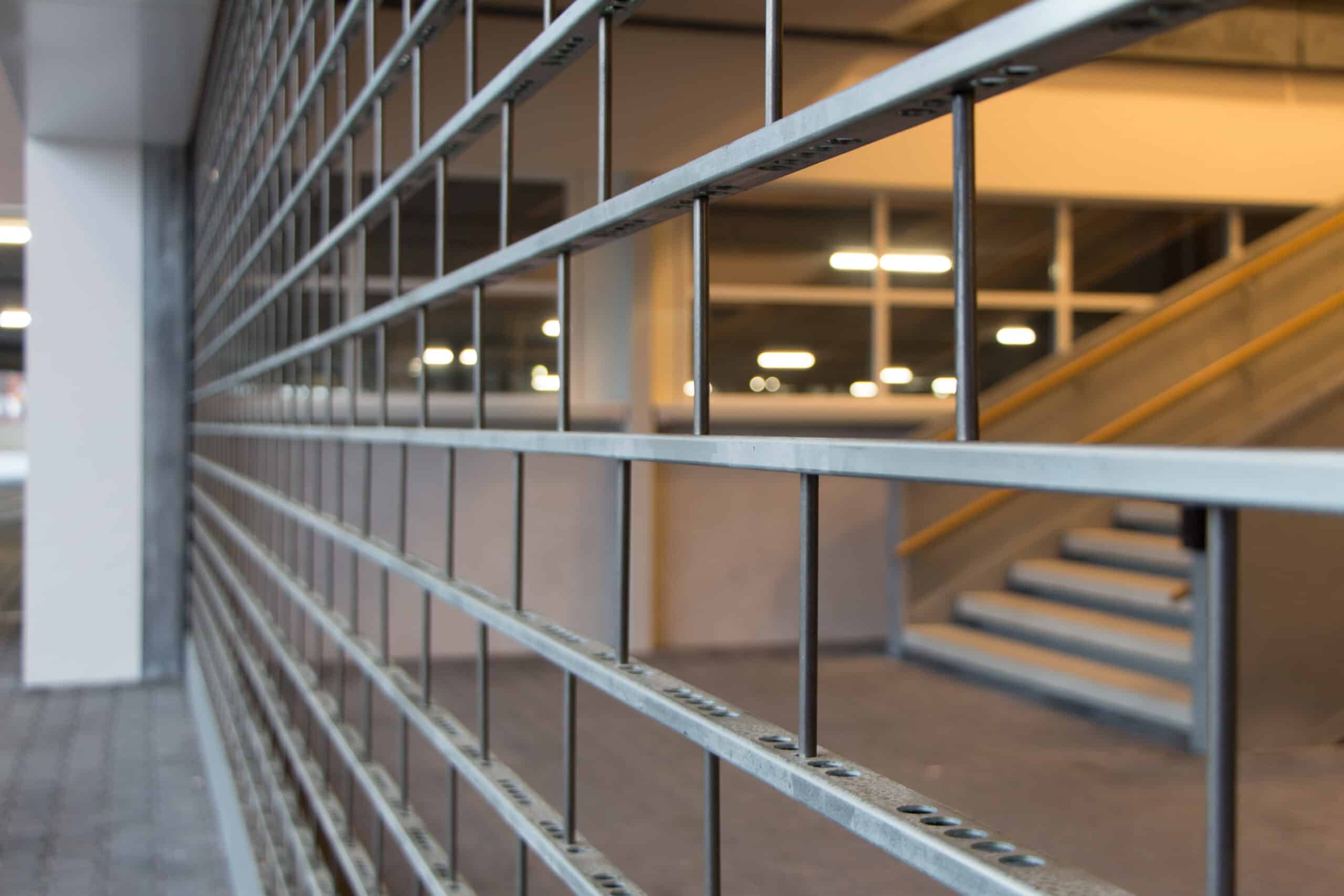

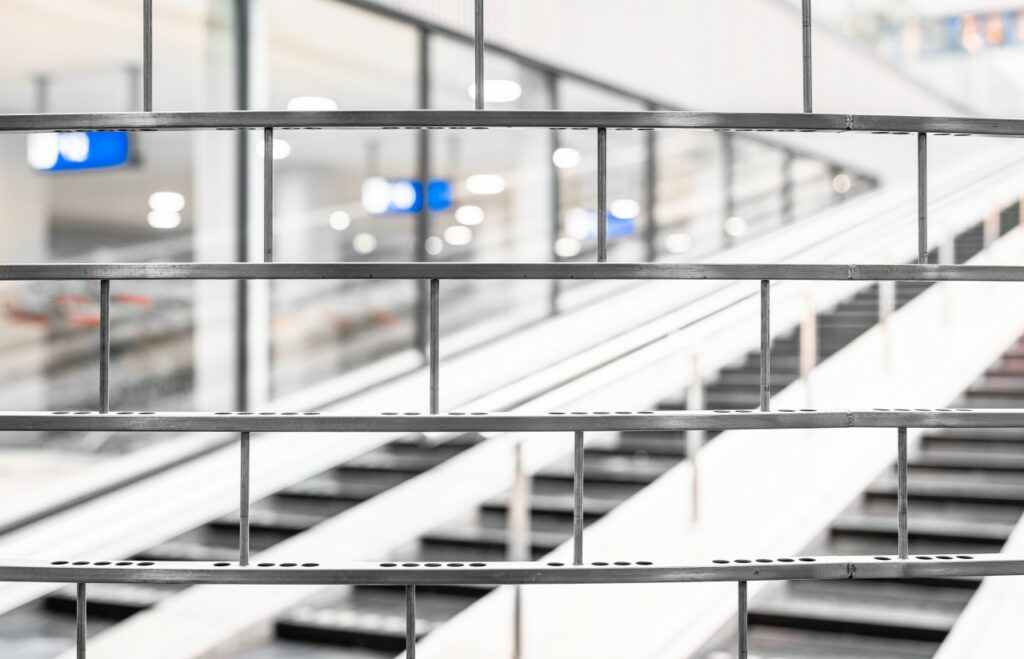

- Galvanised steel pins secured into horizontal galvanised steel bars. Stainless steel pins and bars as an option.
- Optional brushed stainless steel or polyester powder coat finish to horizontal bars to any standard RAL/BS colour
- Heavy duty extruded aluminium guide rails anchored directly to the structure
- Motorised for controlled ascent and descent
- High or low duty cycle electrical motors
- Motorised to allow controlled ascent and descent
- External Drive Motor or Tube Motor depending upon application.
- Range of compatible controls including rotary switch, key switch, remote (control) and emergency manual crank
- Maximum width: 16m, maximum height 7m.
View Data Sheet for Approved Dimensions:
