Stackdoor Standard

STACKDOOR standard, Minimalist design with 80% FREE AIRFLOW

With sleek lines and a high quality finish, the minimalist appearance of the Stackdoor blends with the essential elements of a luxury retail brand, while also being robust enough to protect commercial buildings and underground car parks.

Car park shutters within residential developments must offer ventilation and a source of natural light. Stackdoor Standard is an excellent solution as it provides up to 80% free open area through stack-and-pin technology. Rather than rolling up like a regular security shutter, the upright stacking feature of Stackdoor Standard eliminates the need for a traditional headbox and gives a ideal solution when there is little installation space.

Stackdoor Standard Stacking Grille Features

Stackdoor is a lightweight system designed for maximum visibility without compromising security.

This revolutionary stacking grille features over 80% free airflow through stack-and-pin technology, with a stacking mechanism that minimises installation volume.

It eliminates the need for a headbox, requiring only minimal space above the curtain.

Unlike standard security grilles, Stackdoor models include self-locking technology, ideal for shop security shutters, preventing lifting without additional locks.

  • Open structure ensures unobstructed views, ventilation, and an attractive appearance.
  • Space-saving design takes up less space than classic security shutters.
  • Burglar and vandal-resistant due to robust, sturdy construction.
  • Compact stacking zone at high level with no head box.
  • Self-locking mechanism enhances security without auxiliary locks.

Typical Applications for Stackdoor Standard

  • Zoning & partitioning
  • Car parks
  • Retail outlets
  • Medium risk commercial buildings
  • Airports & stations

An effective alternative to shop front roller shutters and car park roller shutters

Specification Details & Options



  • Galvanised steel pins secured into horizontal galvanised steel bars. Stainless steel pins and bars as an option.
  • Optional brushed stainless steel or polyester powder coat finish to horizontal bars to any standard RAL/BS colour
  • Heavy duty extruded aluminium guide rails anchored direct to the structure
  • Motorised to allow controlled ascent and descent
  • External Drive Motor
  • Range of compatible controls including rotary switch, key switch, remote (control) and emergency manual crank
View Data Sheet for Approved Dimensions:

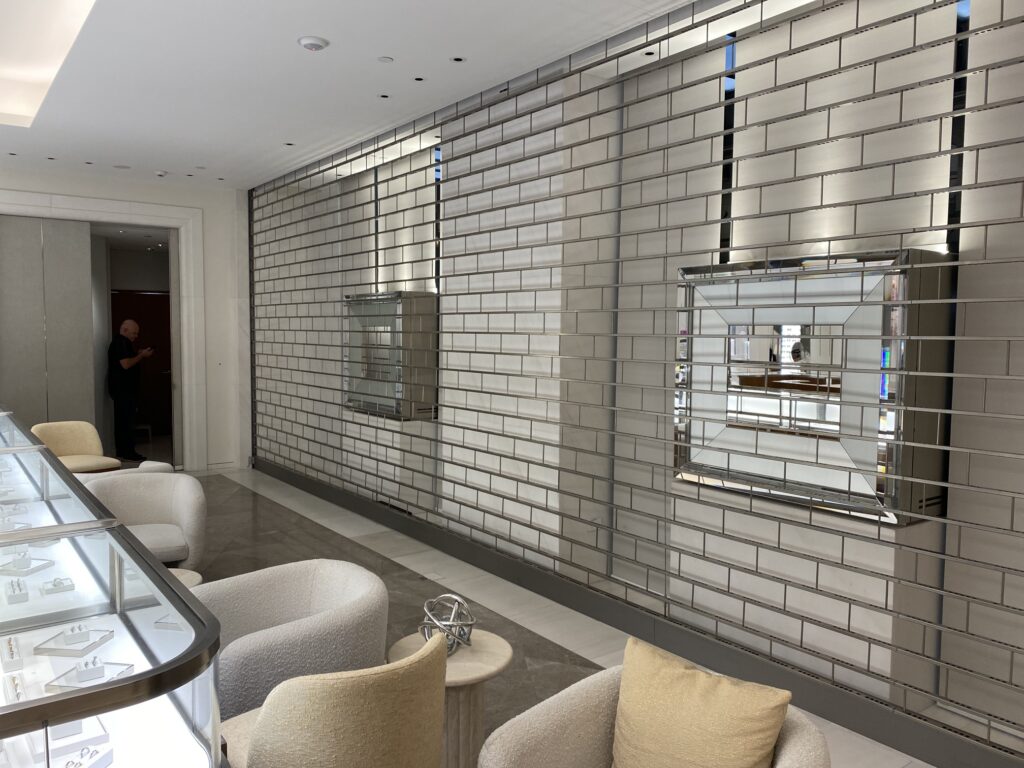

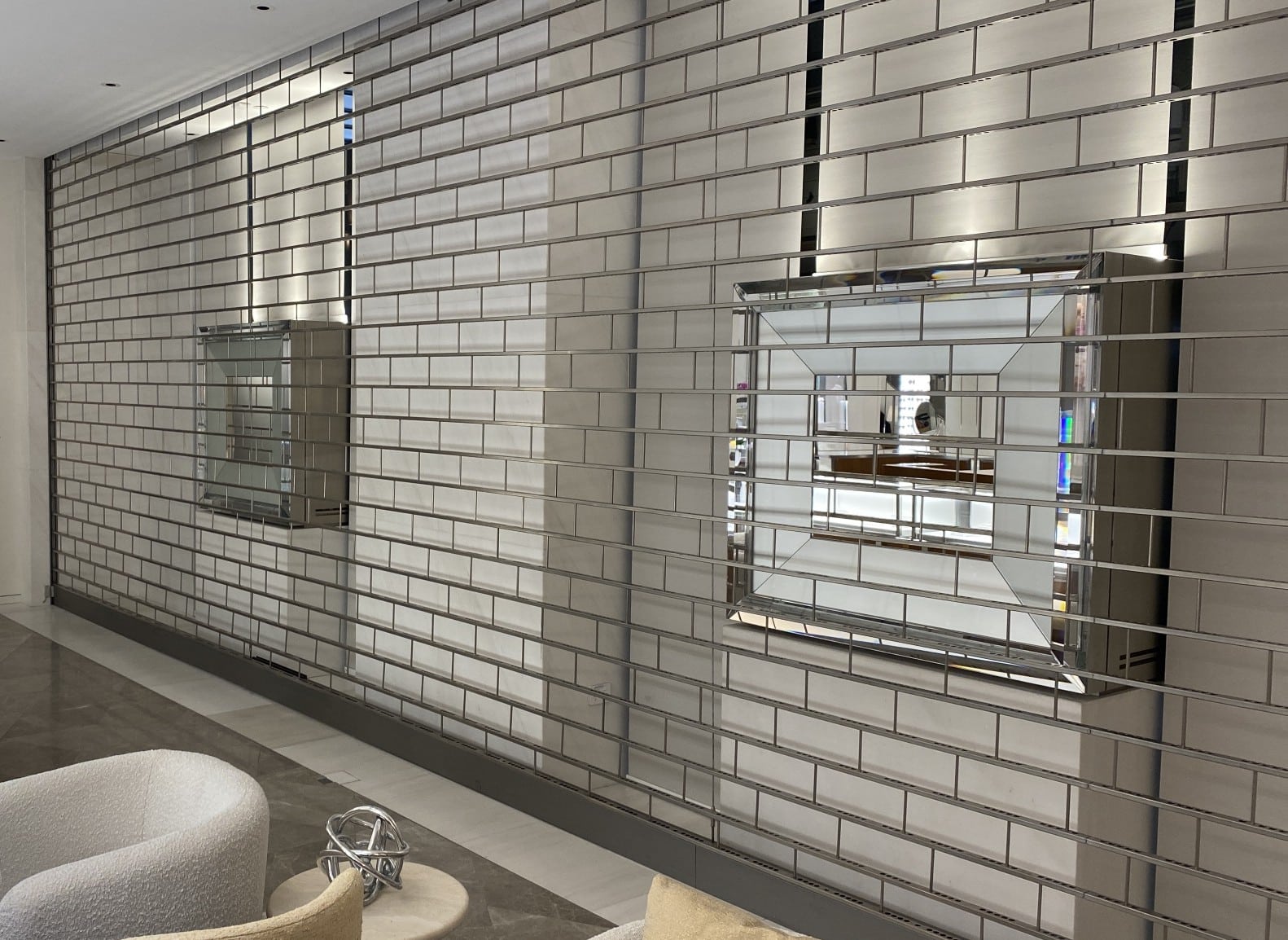

PHOTO GALLERY

GENERATE YOUR OWN SPECIFICATION TEXT FOR THIS PRODUCT

Enter your project details below to receive generated specification text for your project.

Stackdoor Configurator

Clear sizes

By default, the Stackdoor is operated by means of a key switch. In principle, any operating component is possible.
If the gate protects the only entrance, an emergency operation is recommended so that the user can reach the meter box in the event of a power failure.
